| Model Number | MB520-KGNN-S00, MB520-WGNN-S00 | |
| Exterior Color | Black, White | |
| Materials - Exterior | Mesh, Steel, ABS Plastic, Tempered Glass | |
| Materials - Left Side Panel | Tempered Glass | |
| Dimensions (L x W x H) | 499 x 210 x 498mm (Incl. Protrusions), 430 x 210 x 479mm (Body Size) | |

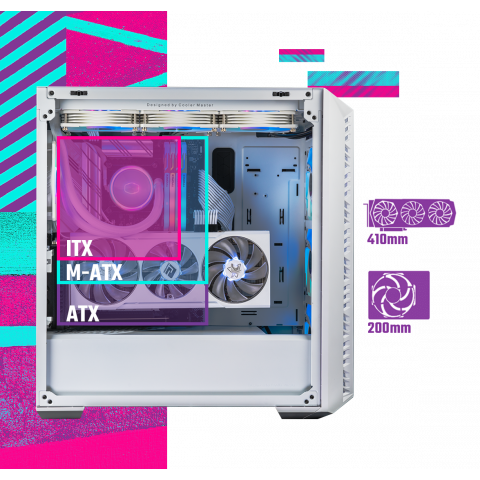

| Motherboard Support | Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*up to 12" x 10.7" motherboards, may impact cable management feature) | |
| |
| |
| |

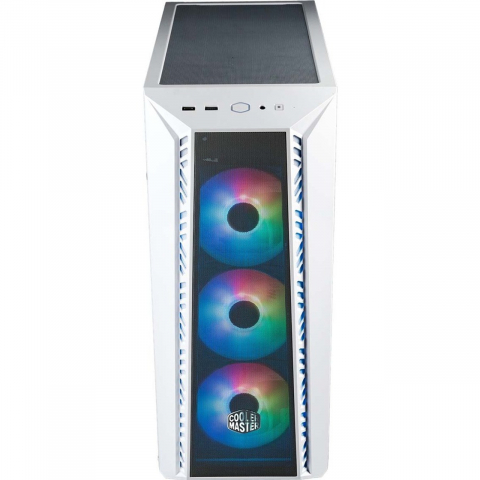

| I/O Panel | 1x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2 Type-C, 1x 3.5mm Headset Jack (Audio+Mic), 1x Reset/ARGB button | |
| Included Accessories | ARGB Fans Hub | |
| Pre-installed Fans - Front | 3x CF120 ARGB | |
| Fan Support - Top | 3x 120mm, 2x 140mm | |
| Fan Support - Front | 3x 120mm, 2x 140mm | |
| Fan Support - Rear | 1x 120mm | |
| Radiator Support - Top | 120mm, 140mm, 240mm, 280mm, 360mm, (recommended maximum thickness -55mm) | |
| Radiator Support - Front | 120mm, 140mm, 240mm, 280mm, 360mm | |
| Radiator Support - Rear | 120mm | |
| Clearance - CPU Cooler | 165mm/6.49" | |
| Clearance - PSU | 200mm, (Recommended up to 170mm) | |
| Clearance - GFX | 410mm/16.1" | |
| Dust Filters | Bottom, Front, Top | |
| |
| |
| |
| |
